The question nobody asks first

When you set up HashiCorp Boundary, the tutorials get you to a working SSH session quickly and you feel like you understand it. Then someone asks a question you cannot answer: whose machine did my keystrokes travel through?

It matters more than it sounds. On HCP, Boundary gives you managed workers with public IP addresses, and by default your session goes through them. That may be completely fine. It may also be unacceptable. A regulator, a data-residency rule or simply a security review will eventually ask the same question: does your production shell traffic pass through infrastructure you do not run, in a region you did not choose?

Boundary's answer is the worker filter, and it has two forms that are easy to confuse because the documentation treats them as symmetrical options. They are not symmetrical at all. One of them keeps HCP in the data path and one removes it, and which you get is decided by a config line most people copy without reading.

The one line that decides everything

Here are the three worker configurations I ended up with. Look only at public_addr:

# Azure — egress worker
worker {
  public_addr = "192.168.9.4:9202"          # private address
  auth_storage_path = "/home/azureuser/boundary/worker1"
  tags {
    owner = ["kst"]
    cloud-env = ["azure"]
    region = ["uae-north"]
  }
}

# AWS — worker 1 of a multi-hop chain
worker {
  public_addr = "192.168.80.252"            # private address
  auth_storage_path = "/home/ubuntu/boundary/worker1"
  tags {
    owner = ["kst"]
    country = ["india"]
    region = ["ap-south-1"]
  }
}

# GCP — ingress worker
worker {
  public_addr = "34.18.234.32:9202"         # a real, routable public IP
  auth_storage_path = "/home/boundary/worker1"
  tags {
    owner = ["kst"]
    country = ["doha"]
    region = ["middle-east"]
  }
}

Nothing about the words "ingress" and "egress" tells you that. They describe which end of the chain the filter is selecting — the worker traffic comes in through, or the worker traffic goes out from. But the consequence is about reachability, and reachability is set by public_addr.

Three paths, one target

Same goal in all three clouds: a VM in a private subnet, no public IP, reachable over SSH by an authenticated engineer. Three quite different routes to it.

Azure Egress filter

The worker sits in a private subnet with no public address. It reaches HCP outbound through a NAT gateway, and that is the only way it talks to the outside world. My client cannot reach it directly, so the session goes client → HCP managed worker → my worker → target. The egress filter is how I tell the controller which of my workers should make that last hop.

The security posture here is genuinely good: I expose nothing. The cost is that HCP's infrastructure is in my data path, and I cannot apply any network policy to who reaches it. Those workers are shared, public and not mine.

AWS Multi-hop egress

Same idea, one level deeper. The target lives in a second VPC that has no route to the internet at all: no NAT, no gateway, nothing. A single worker could not reach both HCP and the target, so there are two: worker 1 in the boundary VPC, worker 2 in the profile VPC, peered.

Worker 2 never talks to HCP. It dials worker 1, which dials HCP. The session becomes client → HCP → worker 1 → worker 2 → target. This is the pattern for reaching genuinely isolated networks, and it is the one where the reverse connection model below stops being a curiosity and starts being the reason it works at all.

GCP Ingress filter

Here the worker sits in a public subnet with a real external IP, and public_addr names it. Now my client can dial the worker directly, so the path collapses to client → my worker → target. HCP is still involved — the worker registers with it and heartbeats to it — but no session byte passes through HCP.

My note on the board, written at the moment it clicked, says it better than I would rewrite it now:

That is the real trade. You take on a public IP and the duty to defend it, and in exchange the firewall in front of the data path becomes yours to write. Allow 9202 from the office range and nothing else, and the exposure is far smaller than the phrase "public IP" suggests.

Who dials whom

This is the part that took me longest to see, and it makes every firewall rule in the article make sense.

Workers do not listen for the control plane. They dial out to it and hold the connection open. You can watch it happen in the worker's own log at startup:

{"op":"reverseconn_ent.(*dialingListener).SetAddresses",
 "data":{"address":"<id>.proxy.boundary.hashicorp.cloud:9202",
         "msg":"dialing"}}

reverseconn and dialingListener — a listener that dials. The worker is establishing the connection that the controller will later push work down. In a multi-hop chain the same thing happens at every level: worker 2 dials worker 1, worker 1 dials HCP.

The consequences are worth stating explicitly, because they are the whole security argument:

• No worker needs an inbound firewall rule from the internet — ever, in any of these designs, except the GCP ingress worker where I deliberately chose to accept client connections.
• The deepest worker in a chain needs no inbound rule at all, and no NAT gateway, because it only dials its neighbour on the peered network.
• Firewall policy gets simpler the deeper into the network you go, which is the opposite of how bastion-based designs behave.

How the controller picks the route

A thing that confused me early: worker 2 has no configuration mentioning my target. It does not know the address. It never reads the target record. So how does it know where to connect?

It is told. In order:

1. You ask. You say "connect me to tssh_TnK5FbClBJ". The controller opens that target's record and reads the address off it — 192.168.90.199, port 22.
2. The controller picks the worker. Your egress filter says worker 2, so the controller decides worker 2 will do the dialing.
3. The instruction is passed down. When worker 2 asks "is this session real?", the answer is not just yes. It is: yes — and when the client's bytes arrive, open a TCP connection to 192.168.90.199:22.
4. Worker 2 dials the host. An ordinary TCP connect, the same thing ssh would do from that box. It is just a normal machine on the same subnet as the instance.
5. It becomes a pipe. Worker 2 now holds two connections — one facing up the chain, one facing the instance — and copies bytes between them. Your traffic arrives at the target as if it came from worker 2's own IP, because it did.

Proving it, hop by hop

Diagrams are claims. Here is the same session observed from every machine in the chain, in the AWS multi-hop build. This is the part I would want to see if someone else wrote this article.

1 · The client

2 · Worker 1

3 · Worker 2

4 · The target

Read those four in order and the architecture stops being a diagram and becomes a fact. My laptop talks to an HCP address. Worker 1 talks to HCP and hears from worker 2. Worker 2 talks to worker 1 and hears from nobody. The target hears plain SSH from a neighbour. Nothing in the chain requires the previous hop to be reachable from the internet.

The clouds are not the same

The Boundary configuration barely changed between clouds. The networking around it changed constantly, and that is where the time went. These are the differences that actually cost me something:

Two of those caught me properly. GCP peering must be created from both sides. AWS lets you request from the source and accept at the target, which is one mental model. GCP wants a matching configuration at each end, and the peering simply stays inactive until it has both. And GCP's firewall rules are selected by tag, not attached to a machine. You write a rule that says "this applies to anything tagged vm-self-managed-worker", then tag the VM. It is closer to a Kubernetes selector than to a security group, and it is genuinely nicer once the model lands.

Building it, three ways

The shape is the same everywhere. Here it is as a sequence, with the per-cloud differences called out rather than repeated three times.

1 · Two networks and a peering

One network for the worker, one for the workload, peered. In AWS that is two VPCs plus route table entries on both sides. In Azure, two VNets and a peering created in both directions. The system routes appear on their own. In GCP, two VPCs and a peering configured at each end.

The worker subnet is public only in the GCP ingress design. In the other two it is private with a NAT gateway for outbound.

2 · Firewall rules, written as a chain

The rules follow the dial direction, and writing them in that order makes them obvious. For the multi-hop AWS build:

bastion       in : SSH from my address           (temporary)
              out: SSH to worker 1, worker 2

worker 1      in : SSH from bastion                (management)
                   9202 from worker 2              (the chain)
              out: 9202 to HCP managed workers

worker 2      in : SSH from bastion                (removable)
              out: 9202 to worker 1
                   22   to the target

target        in : SSH from worker 2 only
              out: nothing

Note the target's outbound rule: nothing. It does not need to reach anything, including the internet, and saying so explicitly is free.

For the GCP ingress build there is one extra inbound rule and one fewer hop — 9202 from my client range on the worker. That single line is the thing the egress designs cannot express.

3 · Install and register the worker

Copy the binary in (via the temporary bastion, or by allowing outbound internet briefly), then run it as a service rather than in a shell:

sudo mv boundary /usr/local/bin/
sudo useradd --system --home /etc/boundary.d --shell /bin/false boundary
sudo chown -R boundary:boundary /home/<user>/boundary

# /etc/systemd/system/boundary-worker.service
[Unit]
Description=Boundary PKI Worker
Requires=network-online.target
After=network-online.target

[Service]
User=boundary
Group=boundary
ExecStart=/usr/local/bin/boundary server -config=/home/<user>/boundary/pki-worker.hcl

sudo systemctl daemon-reload
sudo systemctl enable --now boundary-worker
sudo journalctl -u boundary-worker -f

The first thing the log says is that the node is not yet authorized, which is correct and not an error. Registration is a two-party handshake: the worker writes an auth_request_token into its storage directory, and you paste that into the controller to approve it.

4 · Targets, credentials and the filter

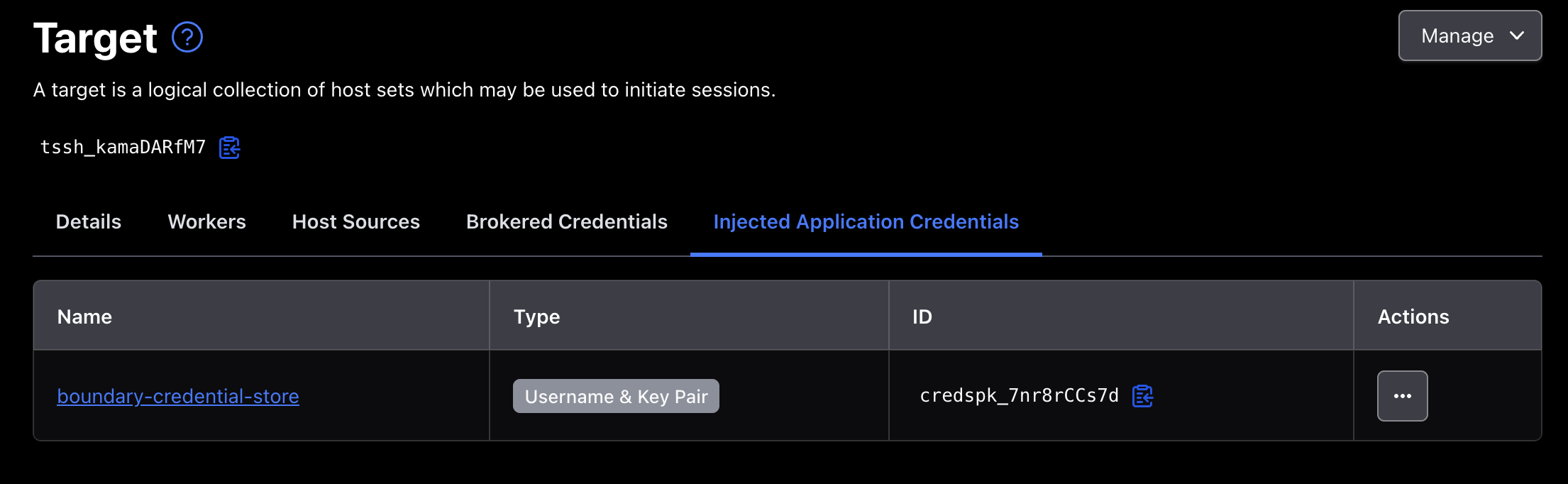

Create the credential store and target, then attach the credential as an injected application credential so the user never handles it:

Then the filter itself, on the target. An egress filter selects which of your workers makes the final hop; an ingress filter selects which worker the client is allowed to enter through. Both are written against worker tags, which is why the tags in those configs above are worth choosing deliberately:

# egress — pick the worker that can reach the host
"azure" in "/tags/cloud-env"

# ingress — pick the worker the client may connect to
"gcp-cloud" in "/tags/automated"

Tag on the things you might one day filter on: cloud, region, owner, whether it was built by automation. Tags are cheap to add now and awkward to retrofit once targets reference them.

Which one should you use?

If I were starting again on a real system, I would begin with the egress filter. It is the least to get wrong. Move to ingress only when someone can say why the transit path matters. "It feels better" is not a reason to own a public IP. "Our sessions may not traverse infrastructure we do not operate" is.

Multi-hop is not a more advanced version of the other two. It answers a different question. Reach for it when the network genuinely has no way out, not when you want extra layers. Every hop is another machine to patch, and the security benefit of hop three over hop two is close to zero if hop two was already private.

The thing I did not expect to come away with is how little of this is about Boundary. The controller does the same job in all three clouds and the worker config differs by one meaningful line. What differs is the network. The same design took three attempts because AWS, Azure and GCP disagree about what a route is, what a firewall attaches to, and what happens by default. Boundary was the easy half. Again.
